Home High and Low Bays WHB7 160W Smart RGBW Full Surface Linear High Bay, 120-277V, 3500-5000K CCT by ASD
Specification Sheet

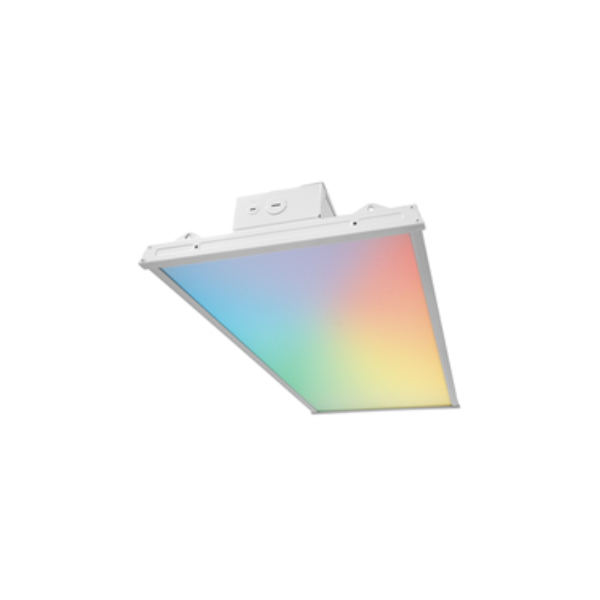

WHB7 160W Smart RGBW Full Surface Linear High Bay, 120-277V, 3500-5000K CCT by ASD

$315.00

The ASD-WHB7-160RGBW is a smart linear LED high bay featuring 160W output with RGBW lighting and adjustable white light from 2700K to 6500K, delivering up to 19,257 lumens with a CRI of 80+. Operating on 120–277V, it is controlled through the ASD Smart App, allowing adjustment of brightness, color temperature, RGB colors, custom lighting scenes, scheduling, and group control with support for Amazon Alexa. The fixture features a die-cast aluminum housing, anti-glare polycarbonate lens, and supports ceiling, pendant, and suspended mounting, making it ideal for warehouses, supermarkets, retail stores, gyms, and other commercial or industrial applications.


Brand :
ASD
Model Number :
ASD-WHB7-160RGBW
Type :
Linear
Lumens :
19,257 lm
Watts :
160W
Voltage :
120-277V
Color Temperature :
RGBW 2700-6500K
CRI :
80+
Optics :
Mounting :
Ceiling, Pendant, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
Field Adjustable
Ratings :
Damp
Safety Certification :
UL Listed
Dimensions (L x W x H) :
23.63" x 11.81" x 2.88"
Weight :
8.4
