WHB7 220W Smart RGBW Full Surface Linear High Bay, 120-277V, 3500-5000K CCT by ASD

$385.50

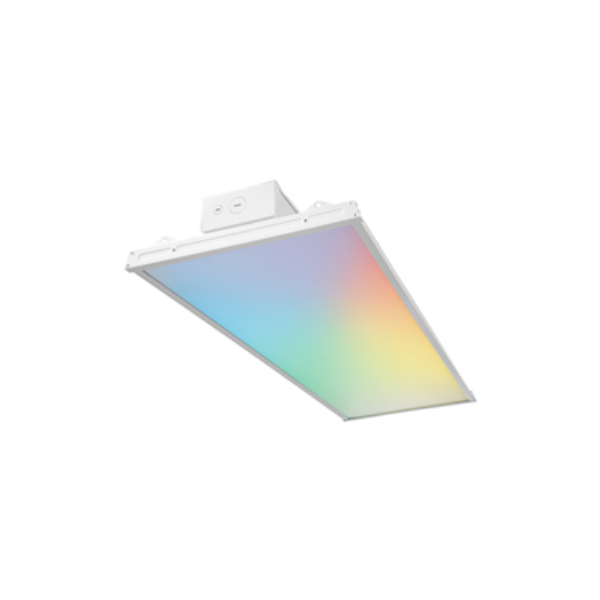

The ASD-WHB7-220RGBW is a smart linear LED high bay featuring 220W output with RGBW lighting and adjustable white light from 2700K to 6500K, delivering up to 26,520 lumens with a CRI of 80+. Operating on 120–277V, it is controlled through the ASD Smart App, allowing adjustment of brightness, color temperature, RGB colors, custom lighting scenes, scheduling, and group control with support for Amazon Alexa. The fixture features a die-cast aluminum housing, anti-glare polycarbonate lens, and supports ceiling, pendant, and suspended mounting, making it ideal for warehouses, supermarkets, retail stores, gyms, and other commercial or industrial applications.


Brand :
ASD
Model Number :
ASD-WHB7-220RGBW
Type :
Linear
Lumens :
26,520 lm
Watts :
220W
Voltage :
120-277V
Color Temperature :
RGBW 2700-6500K
CRI :
80+
Optics :
Mounting :
Ceiling, Pendant, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
Field Adjustable
Ratings :
Damp
Safety Certification :
UL Listed
Dimensions (L x W x H) :
32.69" x 11.81" x 3.00"
Weight :
9.9
