WTZ Amazon 4' LED Narrow Linear Vapor Tight By ILP
Additional Information
Specification Sheet
Download
Installation Instructions
Download
Dimensions
Download
WTZ Amazon 4' LED Narrow Linear Vapor Tight By ILP
From :
$183.33
Robust & Durable Narrow Body Linear Vapor Tight
Industry Leading Max Ambient up to 131F
- Ambient Range -40ºF to 131ºF (Select Models)
Extremely High Efficacy up to 156 lm/W
Lumen Packages Ranging 2,000–24,000
Surface, Pendant, Wall & Suspended Mounting Options
Wireless Grouping Controls Options
Multiple Lens Options
Fiberglass Body Attributes:
- F1 Weatherability Rating & 5VA Flame Rating
- IP65, IP66 & IP67, NEMA4X, NSF, & 1500 PSI Hosedown
3000K–5000K CCT
>80 Color Rendering Index (CRI)
Calculated L70 >100,000 Hours
0-10V Dimmable Driver (100%–10%)
5 Year Warranty
ETL Listed for Wet Location
DesignLights Consortium® Premium Qualified Luminaire
Lumens :
Choose an option
3,034 lm (3L)
4,074 lm (4L)
5,201 lm (5L)
6,505 lm (6L)
7,549 lm (7L)
8,668 lm (8L)
9,358 lm (9L)
10,245 lm (10L)
13,010 lm (12L)
Color Temperature :
Choose an option
3000K (30)
3500K (35)
4000K (40)
5000K (50)
Lens :
Choose an option
Ribbed Acrylic Frosted - Standard (RAFL)
Smooth Acrylic Frosted (SAFL)
Smooth Acrylic Clear (SACL)
Smooth Polycarbonate Frosted (SPFL)
Smooth Polycarbonate Clear (SPCL )
Ambient Temperature :
Choose an option
Standard (Blank)
-40F Cold Temp Adder (CT)
Stainless Steel Latches :
Choose an option
None
Stainless Steel Latches (SS)
Tamper Proof Screws :
Choose an option
None
Tamper Proof Screws (TPS)
Surge Protector :
Choose an option
None
10kA Surge Protector Installed (SP10)
Battery Backup :
Choose an option
None
5W LED Battery Backup (EM5)
7W LED Battery Backup (EM7)
10W Battery Backup (EM10)
10W Battery Backup - CEC Title 20 Compliant (EM10/HE)
10W Self-Diagnostic Battery Backup - CEC Title 20 Compliant (EM10/HE/SD)
12W Battery Backup (EM12)
Generator Transfer Device (GTD)
14W LED Cold Temp Battery Backup (EMCT14)
Cords :
Choose an option
None
6ft factory installed cord without a plug (C6/3W)
10ft factory installed cord without a plug (C10/3W)
6ft 4-wire cord used for EM fixtures (C6/4W)
10ft 4 Wire cord with 4 leads attached to power for EM fixtures (C10/4W)
6ft 5-wire cord used for non-EM fixtures with external dim control (C6/5W)
10ft 5-wire cord used for non-EM fixtures with external dim control (C10/5W)
6ft 6-wire cord used for EM fixtures with external dim control (C6/6W)
10ft 6-wire cord used for EM fixtures with external dim control (C10/6W)
3-wire mini receptacle installed (3WMR)
Power Entry :
Choose an option
None
1/2" HUB installed in one end of housing for power entry (EMH1)
1/2" HUB installed in both ends of housing for power entry (EMH2)
Driver :
Choose an option
Standard (120-277V)
347V Step Down Transformer (SD347)
480V Step Down Transformer (SD480)
1% Dimming Driver (DIM1)
Controls :
Choose an option
None
Wet Location On/Off Occupancy Sensor (WLOS)
Wet Location On/Off Occupancy Sensor w/ Photocell (WLOSPC)
Wet Location User Selectable Bi-Level Dim Sensor w/ Occupancy (USBD)
On/Off Microwave Sensor Installed Behind Lens (MWS)
User Selectable Bi-Level Dimming Microwave Sensor Installed Behind Lens (MWSUSBD)
EasySense High Bay Grouping Sensor (ESMC/HB)
Legrand FSP-311 (FSP-311B/LX)
X clear
Add to Cart
Brand :
ILP
Model Number :
WTZ4
Lumens :
2,568 lm - 13,873 lm
Watts :
21W - 93W
Voltage :
120-277V
Color Temperature :
3000K, 3500K, 4000K, 5000K
Optics :
Acrylic Frosted | Acrylic Clear | Polycarbonate Frosted | Polycarbonate Clear
Distribution :
Wide
Dimming Type :
0-10V
Mounting :
Ceiling
Ratings :
DLC Premium, DLC Standard, IP65, IP66, IP67, NEMA4X, Title 24
Safety Certification :
ETL Listed, NSF

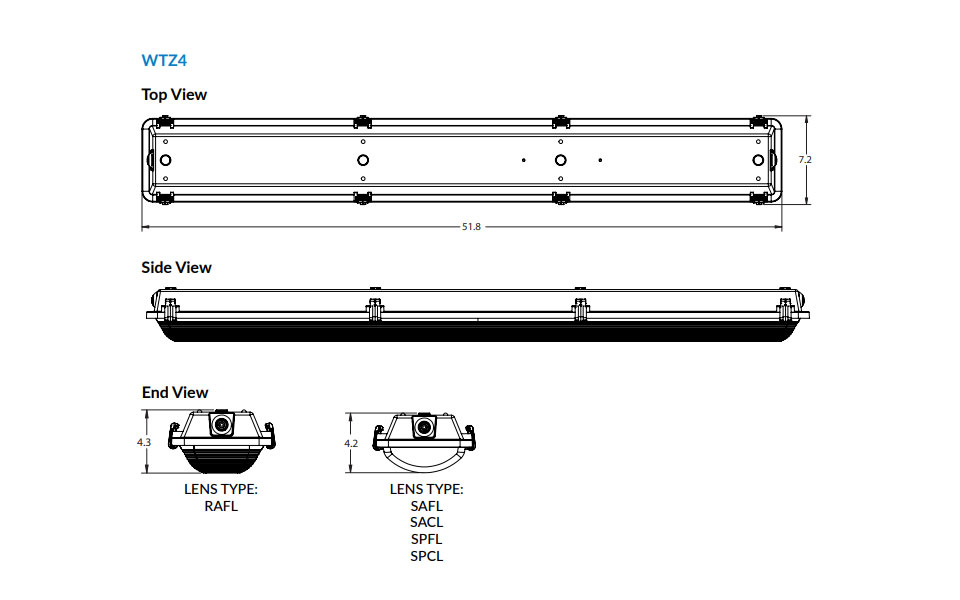

Dimensions (L x W x H) : :
51.80" x 7.20" x 4.30"
