Home High and Low Bays XFit 18" Round Power and Color Selectable LED High Bay by Keystone
Specification Sheet
Dimensions

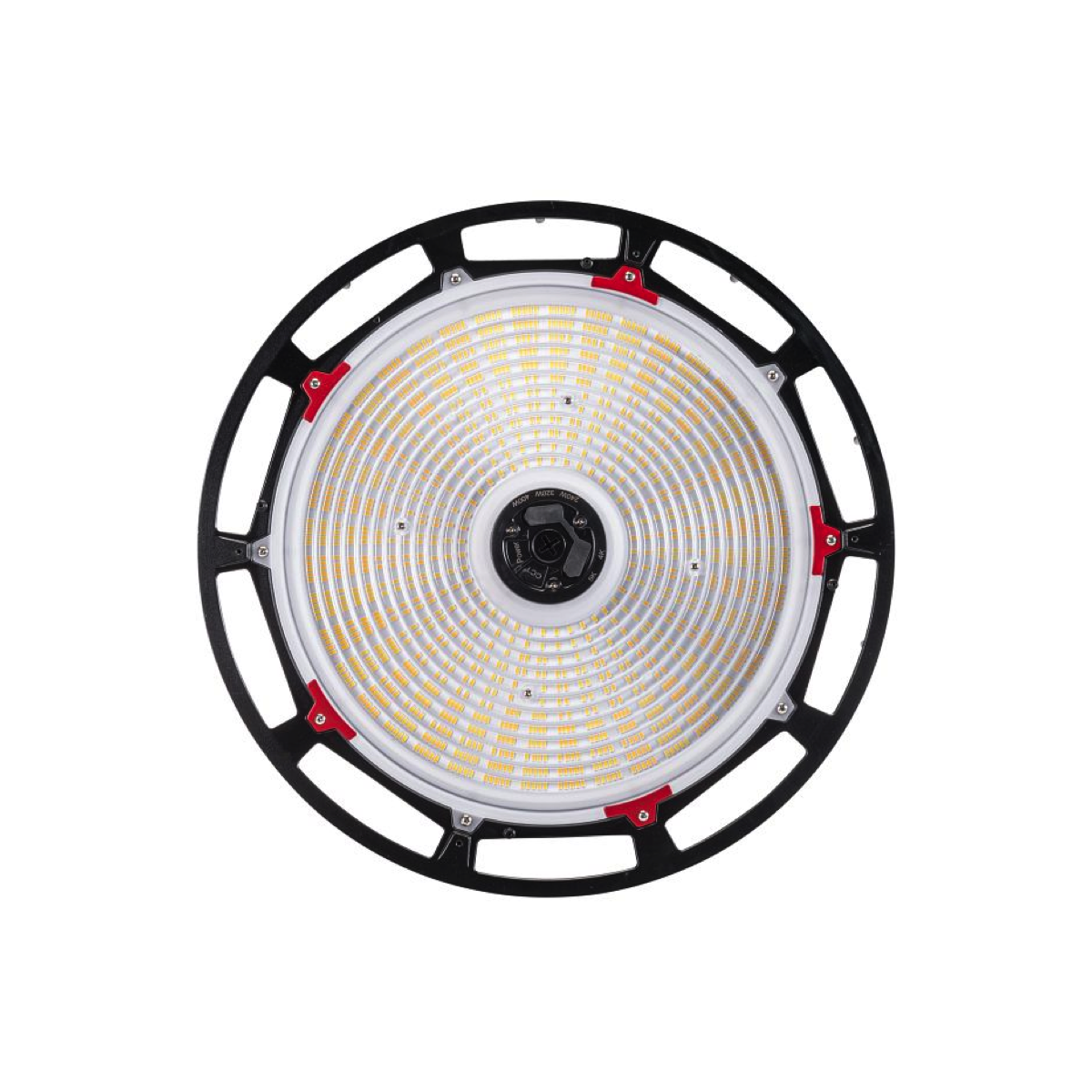

XFit 18" Round Power and Color Selectable LED High Bay by Keystone

From : $683.92


  • High Power Round High Bay, optimized for 40'+ mounting heights and related higher ambient temperatures

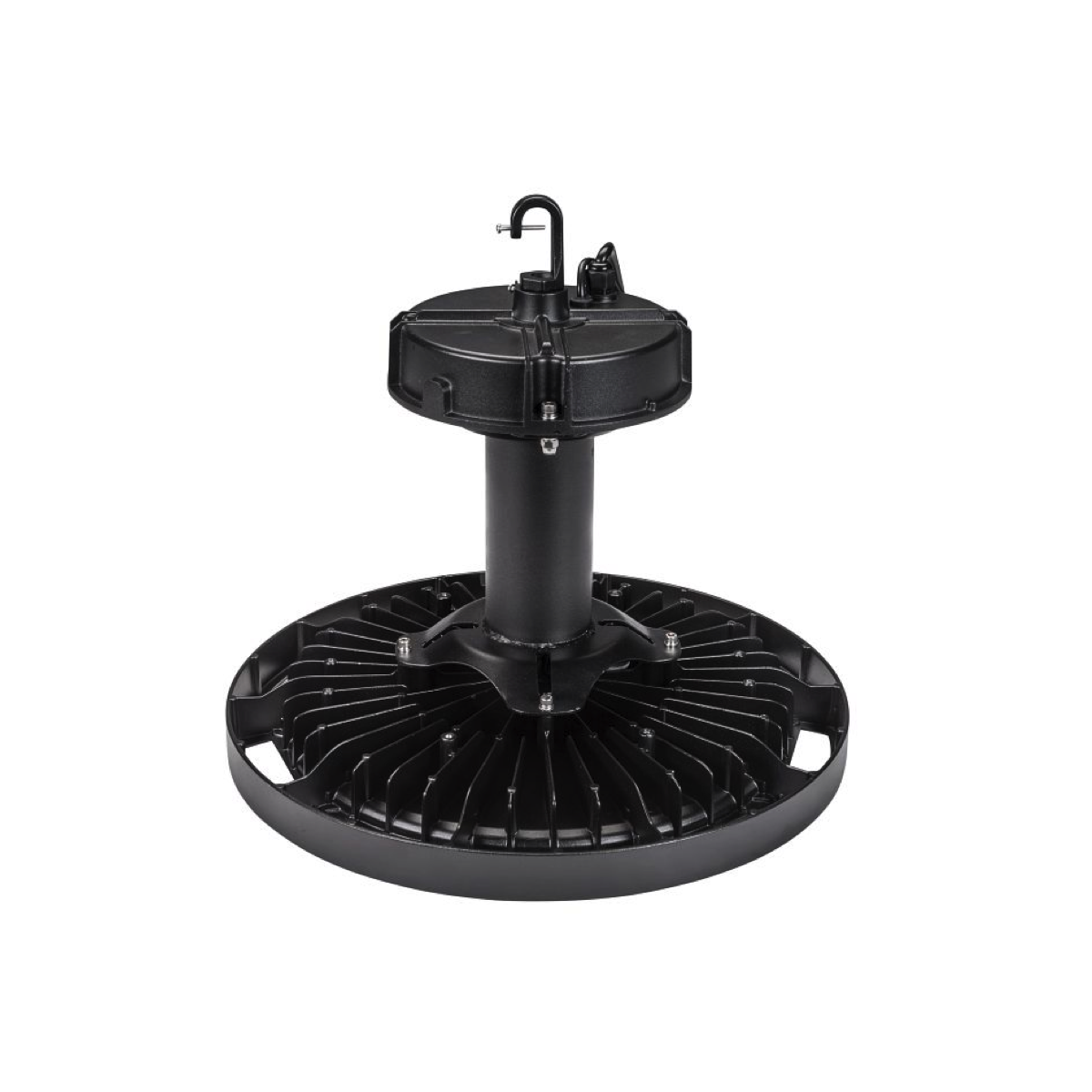

  • Design features a large spacer between LED driver and the diecast heat sink to optimize thermal performance
  • Features Keystone Power Select technology. Adjust power between 400/320/240W, changing lumen output to set high end trim.
  • Features Keystone Color Select technology. Adjust CCT between 4000/5000K
  • Designed with Keystone’s SmartPort receptacle for adding sensors and controls.
  • Powered by Keystone 0–10V dimming LED driver
  • J-Hook mounting accessory included
  • 6' cord for input and dimming wires
  • Powder-coated aluminum housing; Polycarbonate lens




Sensor :
Sensor Remote Control :
Mounting Accessories :
Brand :
Keystone
Model Number :
KT-RHLED400PS-18C-8CSD-VDIM-P
Type :
UFO
Lumens :
38,000-59,000 lm
Watts :
Selectable 240W/320W/400W
Voltage :
120–277V
Color Temperature :
Selectable 4000K/5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant
Environment :
IP65, Wet Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
IP65, TAA, Wet Location
Safety Certification :
DLC 5.1 Premium

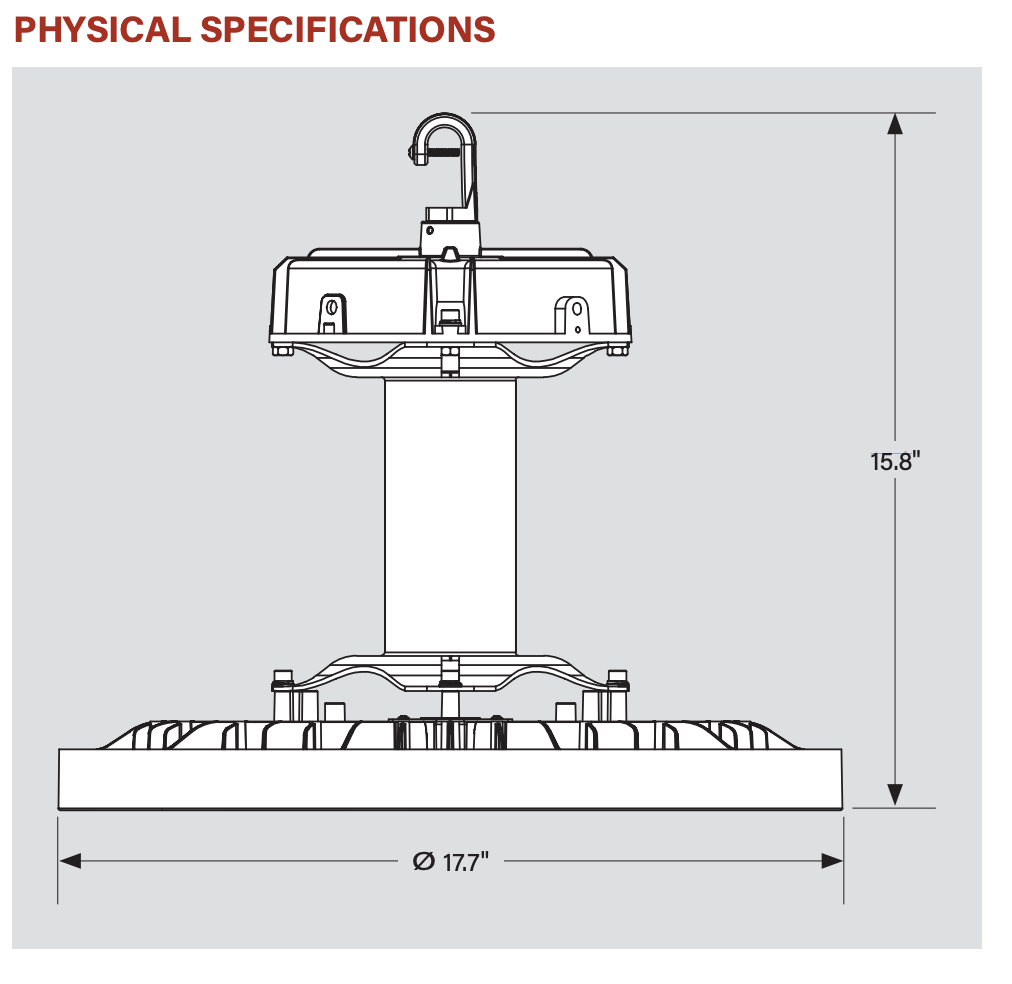

Dimensions (L x W x H) :
17.7" x 17.7" x 15.8"
Weight :
9.99
