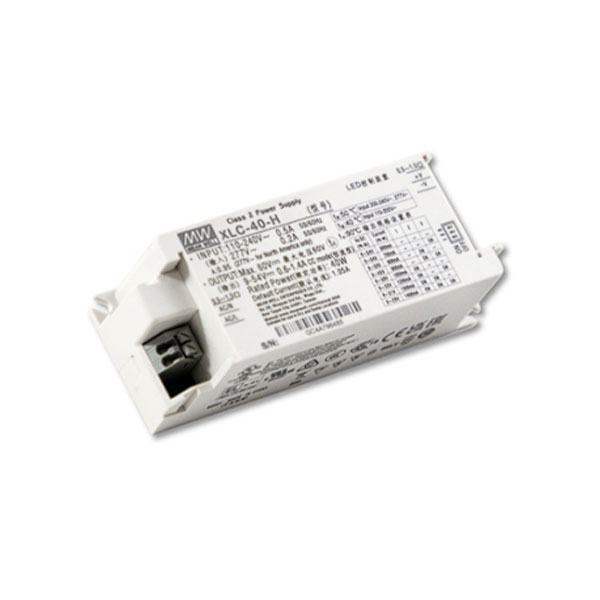

XLC-40-H-BSN Multiple Stage Constant Voltage LED Driver by Mean Well

XLC-40 series is a 25W with constant power and constant voltage output LED driver. It can operate from 100-305V AC and output current ranging between 600mA to 1400mA selectable by dip switch or NFC setting. Thanks to high efficiency up to 88%, it is able to operate for -25ºC~90ºC case temperature under free air convection. XLC-40 series is designed based on latest safety regulations with 3-in-1 and DALI-2 dimming. XLC-40 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED lighting application

• Constant power mode output with multiple stage selectable by dip switch NFC setting (H-type)
• Constant voltage mode output (12/24V)
• Plastic housing with Class II and PFC design
• Meet UL 8750 Class 2/Class P power unit
• Flicker-free, complying with CE ErP directive
• Standby power consumption <0.5W
• Meet emergency lighting (EL) application
• 5 years warranty
