Home Downlights 4" NU4 Series Round Downlight Tunable White (Luminus) by Alphabet Lighting
Specification Sheet
Installation Instructions

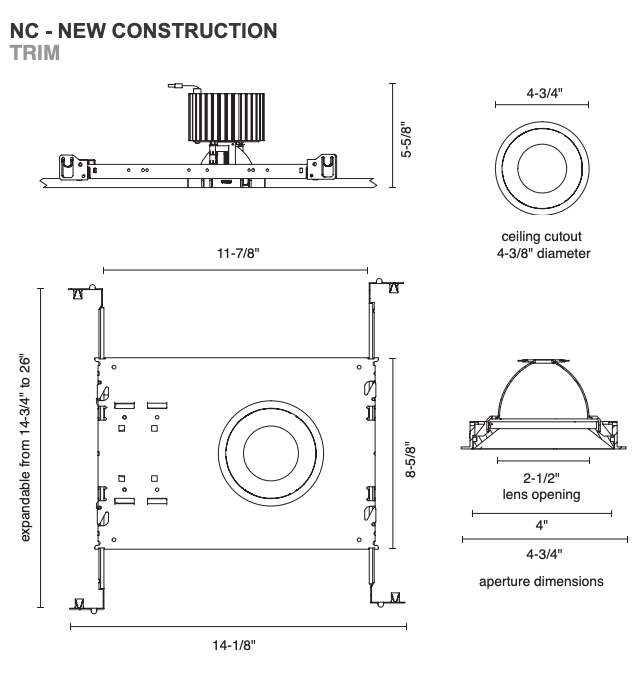

Dimensions
Warranty Information

4" NU4 Series Round Downlight Tunable White (Luminus) by Alphabet Lighting

From : $337.14


The NU4RD-TW 4" recessed downlight by ALPHABET offers economical and efficient, tunable CCT LED technology from Luminus or Nichia, premium performance, thoughtful construction and pleasing aesthetics. Available with optional Bluetooth controls or standard premium dimming using the EldoLED flicker-free driver with LightShape technology at 120V-277V universal voltage. Several beam angles available, plus an optional high-efficiency BrightView diffused lens for smooth light distribution and obscured LED image. Optional integrated nLight®interface for Acuity Controls compatibility. Optional Casambi interface for Bluetooth®control. DALI and 0-10V compatible dimming. For the trim version, a minimalistic look is achieved with an ultrathin 1/16" trim that is only 5/16" wide. Color choices of both trim and bezel are offered for a customized look. For the trimless version, a perforated, mud up, regressed trim assembly provides for clean, trim free installation. Perforated mud frame’s integrated lip helps guide the joint compound creating a sharp and clean opening.


Type :
Lumens :
Color Temperature :
Optics :
Bezel Lens :
Voltage :
Dimming :
Mounting Options :
Trim Color :
Bezel Color :
Brand :
Alphabet
Model Number :
NU4-TW-95
Style :
Fixed Recessed
Aperture Size :
4"
Shape :
Round
Lumens :
625 - 1,645 lm
Watts :
10-25W
Input Voltage :
120-277V
Color Temperature :
Tunable White
CRI :
90+
Beam Angle :
30°, 40°, 45°, 50°, 60°, 70°, 80°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Baffle Finish :
Ratings :
Airtight, Chicago Plenum, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed
Dimensions (L x W x H) :
4.75" x 4.75" x 5.625"
