Home Downlights 4" NU4 Series Round Downlight Warm Dim by Alphabet Lighting
Specification Sheet
Installation Instructions

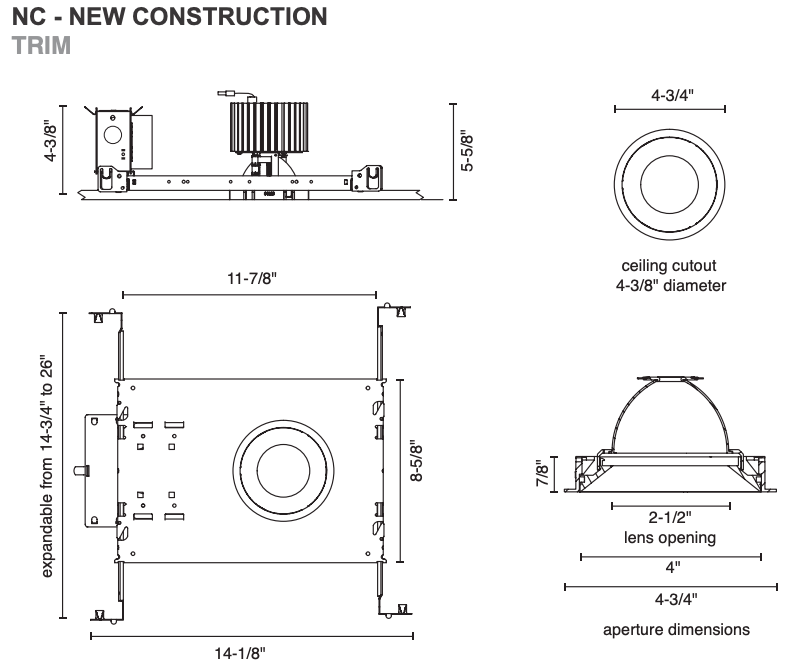

Dimensions
Warranty Information

4" NU4 Series Round Downlight Warm Dim by Alphabet Lighting

From : $264.25


The NU4RD-WD 4" recessed downlight by ALPHABET offers economical and efficient dim-to-warm LED technology from Luminus, premium perfomance, thoughtful construction and pleasing aesthetics. Offered standard with premium dimming using EldoLED 1% flicker free drivers 120V-277V universal voltage. Several beam angles available, plus an optional high-efficiency BrightView diffused lens for smooth light distribution and obscured LED image. For the trim version, a minimalistic look is achieved with an ultrathin 1/16" trim that is only 5/16" wide. Color choices of both trim and bezel are offered for a customized look. For the trimless version, a perforated, mud up, regressed trim assembly provides for clean, trim free installation. Perforated mud frame’s integrated lip helps guide the joint compound creating a sharp and clean opening.


Type :
Lumens :
Optics :
Voltage :
Bezel Lens :
Dimming :
Mounting Options :
Trim Color :
Bezel Color :
Emergency Battery Back-Up :
Brand :
Alphabet
Model Number :
NU4-WD-3018-97
Style :
Fixed Recessed
Aperture Size :
4"
Shape :
Round
Lumens :
800 - 2,400 lm
Watts :
13-40W
Input Voltage :
120-277V
Color Temperature :
Dim-to-Warm
CRI :
90+
Beam Angle :
25°, 40°, 55°, 60°, 80°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Baffle Finish :
Ratings :
Airtight, Chicago Plenum, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed
Dimensions (L x W x H) :
4.75" x 4.75" x 5.625"
