4" NU4QD PRO Series Square Downlight Standard White by Alphabet Lighting
From : $224.25
- Thermally optimized for LED longevity
- 3/4" bezel regress with 1/16" micro flange
- 30° - 80° optical beam control
- UGR < 15
- Multiple mounting, glare control options, trims, and finishes available
- 120V-277V, 120 only Triac / ELV
- Power factory ≥ 0.9
- 2kV driver input surge protection
- Remote and Integral (ITS) emergency test switch
- 7W, 10W (T20 CEC) and 12W EM 90min battery
- Max. ambient installation temperature 95°F (35°C)
Brand :
Alphabet
Model Number :
NU4QD-SW
Style :
Fixed Recessed
Aperture Size :
4"
Shape :
Square
Lumens :
840 - 3,200 lm
Watts :
9-32W
Input Voltage :
120-277V
Color Temperature :
2700K, 3000K, 3500K, 4000K
CRI :
80+, 90+
Beam Angle :
60°, 65°, 70°, 80°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Baffle Finish :
Ratings :
Chicago Plenum, Damp, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed

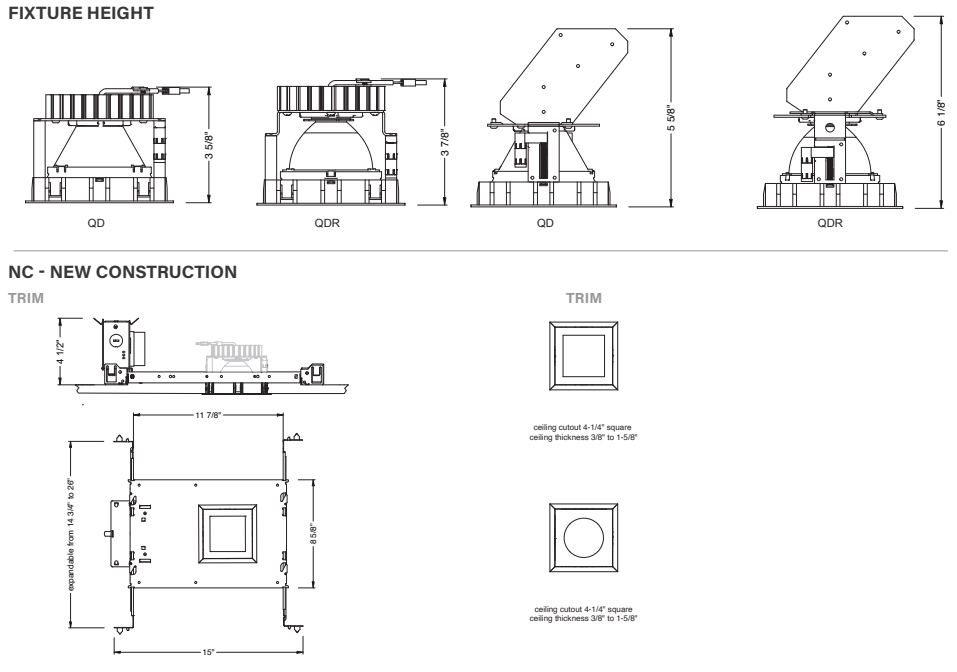

Dimensions (L x W x H) :
4.25" x 4.25" x 3.625"
