Home Downlights 4" NU4QD PRO Series Square Downlight XICATO by Alphabet Lighting
Specification Sheet
Installation Instructions

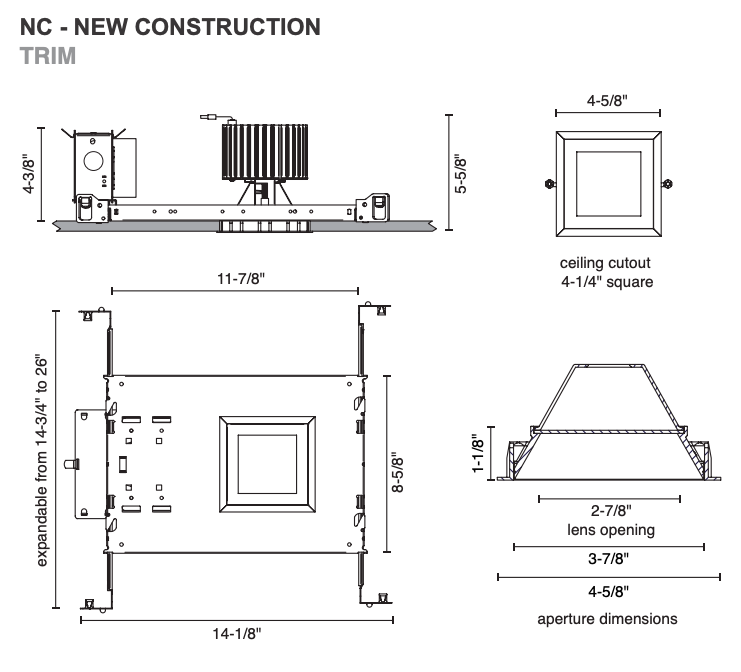

Dimensions
Warranty Information

4" NU4QD PRO Series Square Downlight XICATO by Alphabet Lighting


The NU4QD 4" recessed downlight by ALPHABET offers multiple cutting edge LED technologies, premium performance, thoughtful construction and pleasing aesthetics. Offered standard with premium dimming using EldoLED 1% flicker free drivers 120V-277V universal voltage. Several beam angles available, plus an optional high-efficiency BrightView diffused lens for smooth light distribution and obscured LED image. For the trim version, a minimalistic look is achieved with an ultrathin 1/16" trim that is only 5/16" wide. Color choices of both trim and bezel are offered for a customized look. For the trimless version, a perforated, mud up, regressed trim assembly provides for clean, trim free installation. Perforated mud frame’s integrated lip helps guide the joint compound creating a sharp and clean opening.


Type :
Lumens :
Color Temperature :
CRI :
Optics :
Bezel Lens :
Voltage :
Dimming :
Mounting Options :
Trim Color :
Bezel Color :
Emergency Battery Back-Up :
Brand :
Alphabet
Model Number :
NU4QD-XTM19
Style :
Fixed Recessed
Aperture Size :
4"
Shape :
Square
Lumens :
600 - 3,430 lm
Watts :
10-49W
Input Voltage :
120-277V
Color Temperature :
2700K, 3000K, 3500K, 4000K
CRI :
80+, 90+
Beam Angle :
60°, 65°, 70°, 80°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Ratings :
Chicago Plenum, Damp, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed
Dimensions (L x W x H) :
4.625" x 4.625" x 5.625"
