Home Constant Voltage AL-98-10-24096-4in1 96W 24V 4-in-1 PowerFactor Dimmable Driver with Junction Box by Alloy LED
Specification Sheet

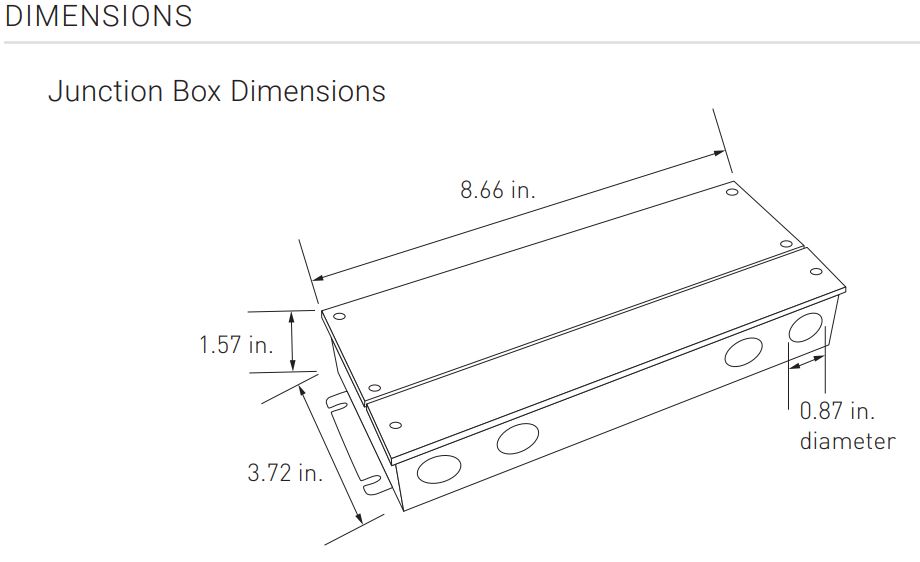

Dimensions
Dimmer Compatibility Chart

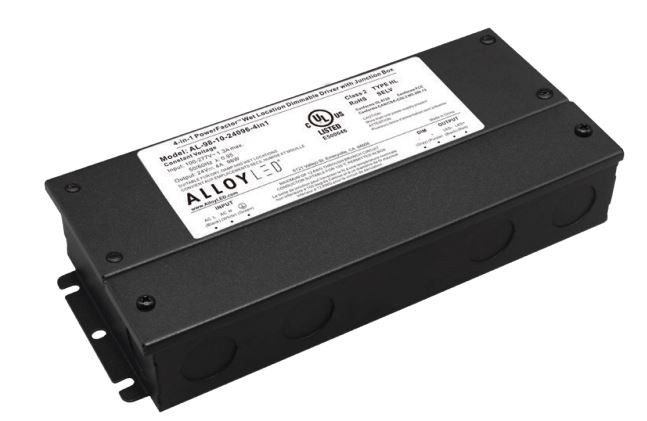

AL-98-10-24096-4in1 96W 24V 4-in-1 PowerFactor Dimmable Driver with Junction Box by Alloy LED

$193.33

4-in-1 PowerFactorâ„¢ Dimmable Drivers provide smooth, stable, and efficient dimming capability for LED lighting. They are compatible with many models of MLV (forward phase dimming), ELV (reverse phase dimming), 0-10V dimming, and 1-10V dimming. This sophisticated power supply is available in a dry/damp/wet environment model to fit most installations.

  • With integrated junction box
  • 99% PowerFactor
  • 100% maximum load, 10% minimum load
  • Class 2
  • Dry/damp/wet environment certified
  • 6-year limited warranty


SKU :
AL-98-10-24096-4in1
Brand :
Alloy LED
Max Wattage :
96W
Input Voltage Range :
120-277V
Output Voltage :
24V
Current Range :
400-4000mA
Default Current :
1300mA
Dimmable :
0-10V, 1-10V, ELV, MLV
Dimming Range :
0-100%, 1-100%
Weight :
3.99
Dimensions (L x W x H) :
8.66" x 3.72" x 1.57"
