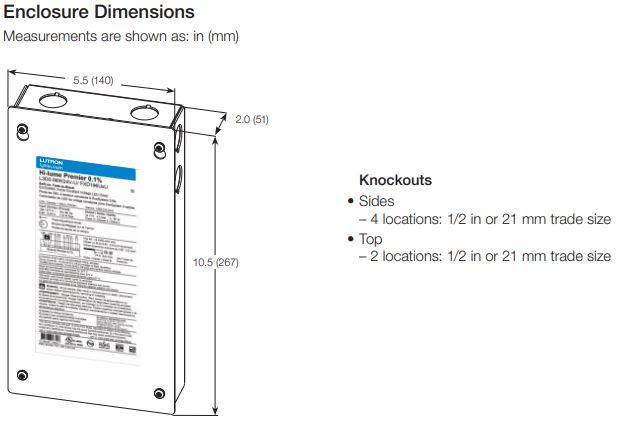

Dimensions

L3D0-96W24V-U 96W 24V Hi-lume Premier 0.1% EcoSystem/3-wire LED Driver by Lutron

$332.85

The Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) is a high-performance LED driver capable of controlling up to 96 W of 24V-constant voltage loads. This driver provides smooth and continuous dimming down to 0.1% low-end. It is ideal for use with strip lighting in applications such as coves, under or over cabinet lighting and pathway lighting. The driver is UL® Listed with an integrated wiring compartment and can be mounted up to 150 ft (45 m) away from the load.

  • Continuous, flicker-free dimming from 100% to 0.1%1
  • Soft-on, Fade-to-Black operation for EcoSystem controls: fades smoothly between 0% and 0.1% when turned on and off for an incandescent-like experience
  • UL® Listed for United States and Canada (cULus®), NOM certified for Mexico
  • Field Adjustment Knob offers customer low-end light output tuning for better fixture-to-fixture matching
  • Guaranteed dimming performance when used with Lutron controls




SKU :
L3D0-96W24V-U
Brand :
Lutron
Max Wattage :
96W
Input Voltage Range :
120-277V
Output Voltage :
24V
Current Range :
400-920mA
Default Current :
920mA
Dimmable :
PWM
Dimming Range :
0.1-100%
Weight :
3.99
Dimensions (L x W x H) :
10.50" x 5.50" x 2.00"
