Home High and Low Bays EVT1-12L/18L/24L-U-40-FRL Everest 2.0 High Bay, 12,000/18,000/24,000 Lumen Select, Frosted Lens, 4000K by ILP

Specification Sheet
Installation Instructions

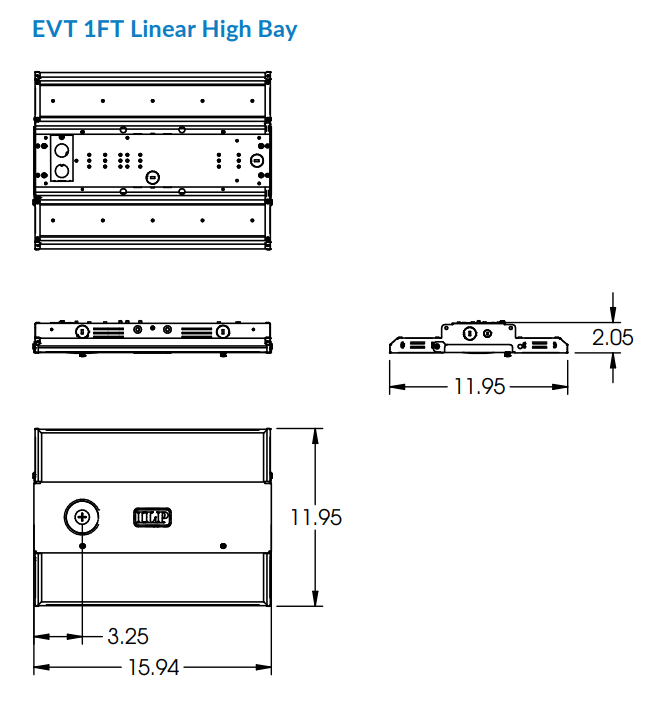

Dimensions

EVT1-12L/18L/24L-U-40-FRL Everest 2.0 High Bay, 12,000/18,000/24,000 Lumen Select, Frosted Lens, 4000K by ILP

$145.00

The Everest 2.0 Series delivers a high-performance lighting solution tailored for industrial and large-space applications. With a rugged steel housing, tool-free access, highly efficient LEDs and flexible configurations, the EVT series offers a reliable, scalable upgrade from traditional fluorescent or HID high-bays. Compact, lightweight fixture design with rugged steel construction and tool-less access into the driver channel for easy installation and maintenance.

  • Versatile 18", 2’, & 3’ housing delivering up to 60,000 lumens
  • Wide Distribution
  • Frosted Acrylic Lens
  • 12,000/18,000/24,000 Lumen Select
  • 4000K CCT
  • -4˚F–122˚F Ambient Temperature Range
  • Sensor ready with 12V Auxiliary Driver Power standard
  • >80 Color Rendering Index (CRI)
  • Calculated L70 >100,000 hrs
  • 0-10V Dimmable Driver (100%–10%)
  • ETL Listed for Damp Location
  • 5 Year Warranty

Brand :
ILP
Model Number :
EVT1-12L/18L/24L-U-40-FRL
Type :
Linear
Lumens :
13,881/19,078/24,000 lm
Watts :
85/120/155W
Voltage :
120-277V
Color Temperature :
4000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling, Pendant, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp, DLC Premium, Title 24
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
15.94" x 11.95" x 2.05"
Weight :
9.99
