HBL EZ Install Integral Occupancy Sensor Linear High Bay by ETI

ETi SSL’s HBL EZ Install Integral OC Sensor Linear High Bay Series with its shallow low-profile, center driver access design and excellent performance (18,529 lumens @ 134.2 LPW) makes for a great design solution for many new construction or retrofit commercial and industrial applications. Each fixture includes mounting hardware for direct surface mount, chain suspension mount and pendant mount (pendant stem by others) for maximum installation flexibility.

• DLC Premium qualified with controls for maximum energy savings & rebates

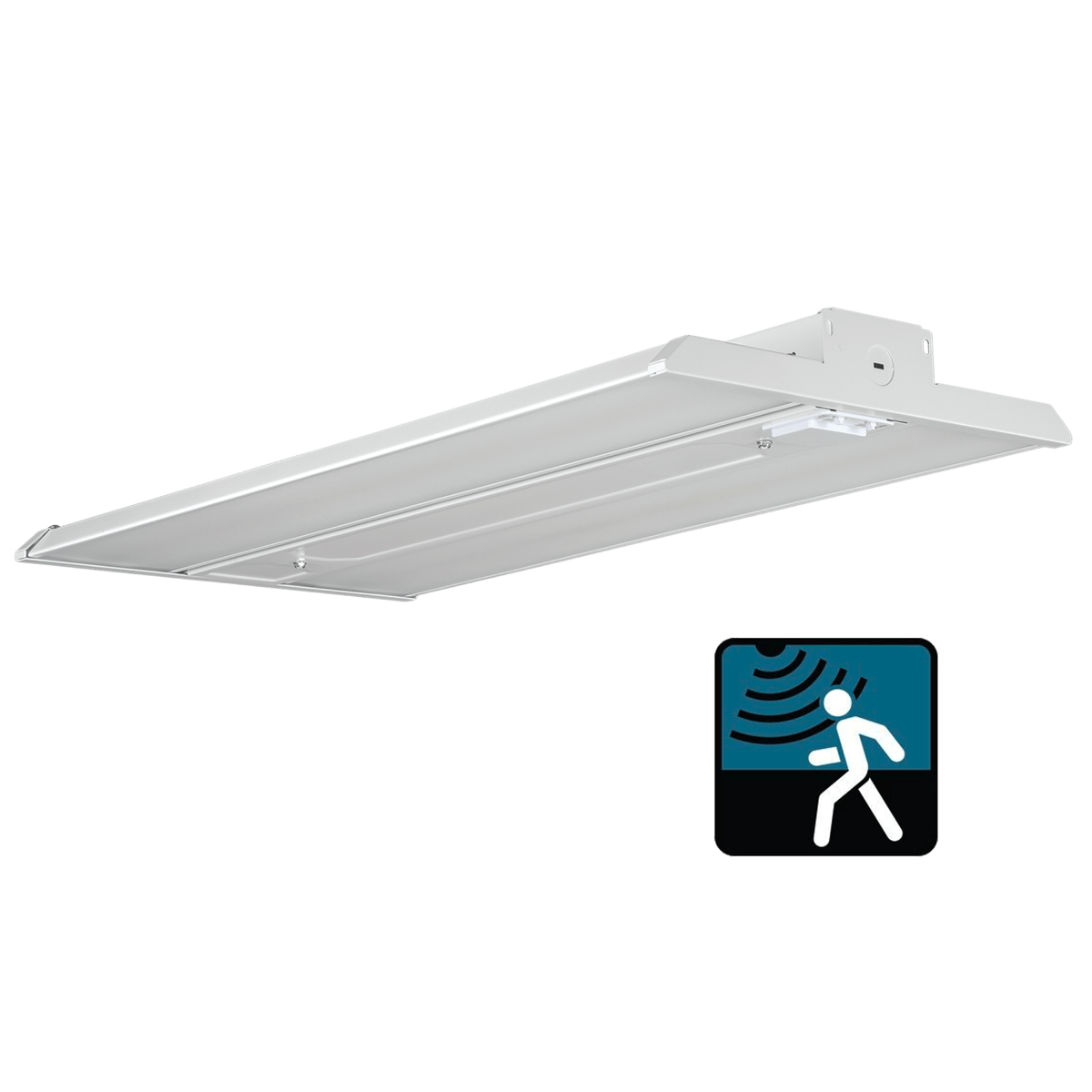

• Integral microwave OC sensor for maximum energy savings & code compliance
• 138W @ 18,529 LM (134 LPW), 60+% in energy savings vs. HID, T5 & T8 luminaires
• 80+ CRI standard for true accurate color rendering & visual performance
• Formed steel housing w/ frosted diffuse lens for reduced glare & visual comfort

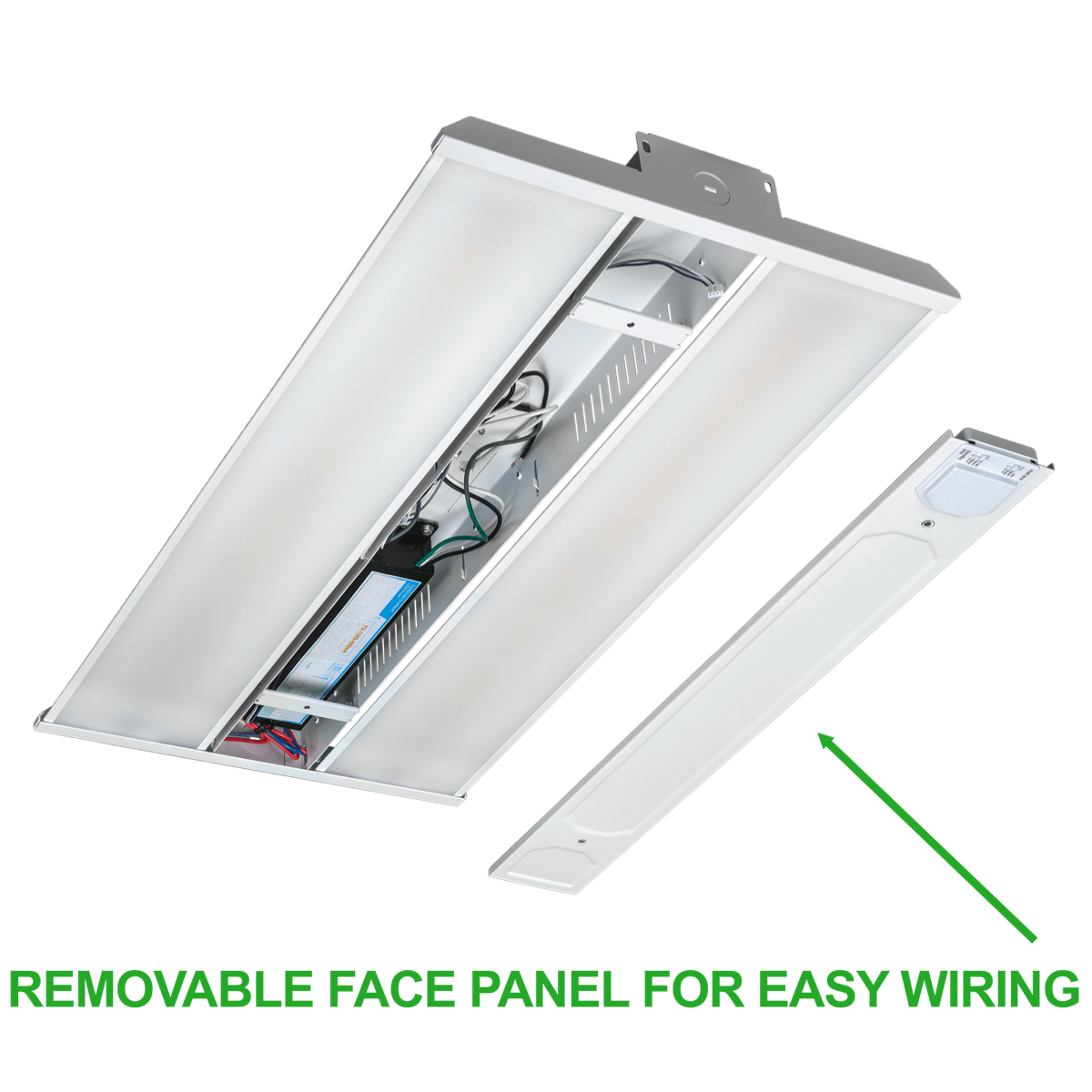

• Center driver housing for max thermal protection & ease of installation
• 120-277V drivers (compatible w/ included integral step dimming OC sensor)
• Standard high ambient temperature rating is standard
• Robust 4kV LED driver surge protection is standard for added protection
• Reported L91/54,000, Projected L70 @ 202,100 hours (min shown per IES TM21)

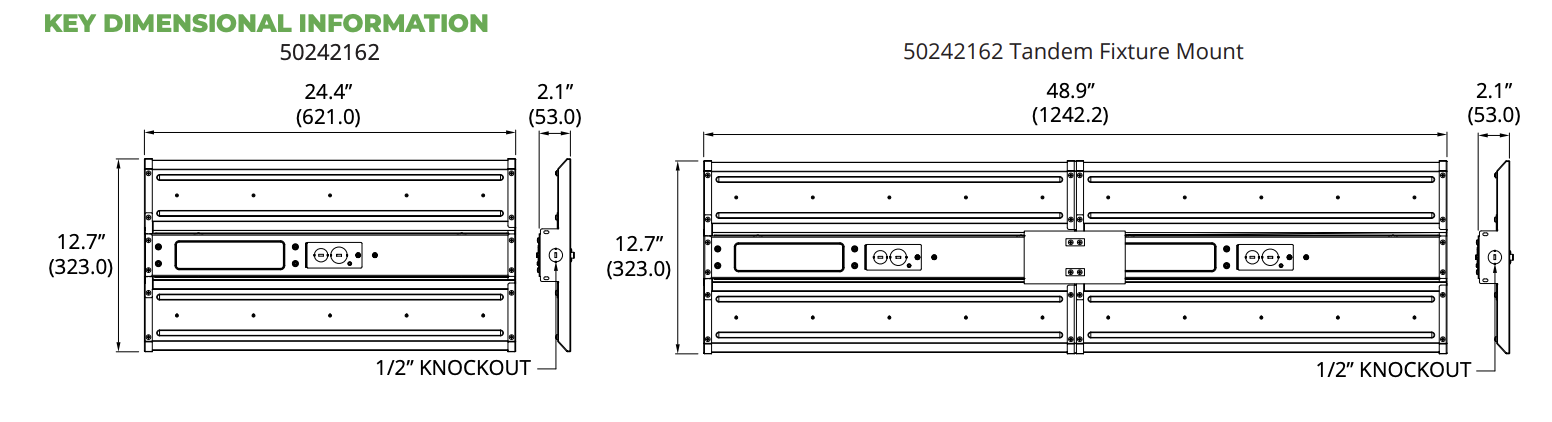

• Low-profile (2.1”) & light weight design (6.1 lbs) = quick & easy installation
• Includes 28” chain mount hardware for easy suspension mount installation
• Surface mount & pendant mount hardware also included = added flexibility
