ILP BL Series Vapor Tight High Bay

Home High and Low Bays 2' BL Series Vapor Tight High Bay by ILP

Additional Information

Specification Sheet
Installation Instructions

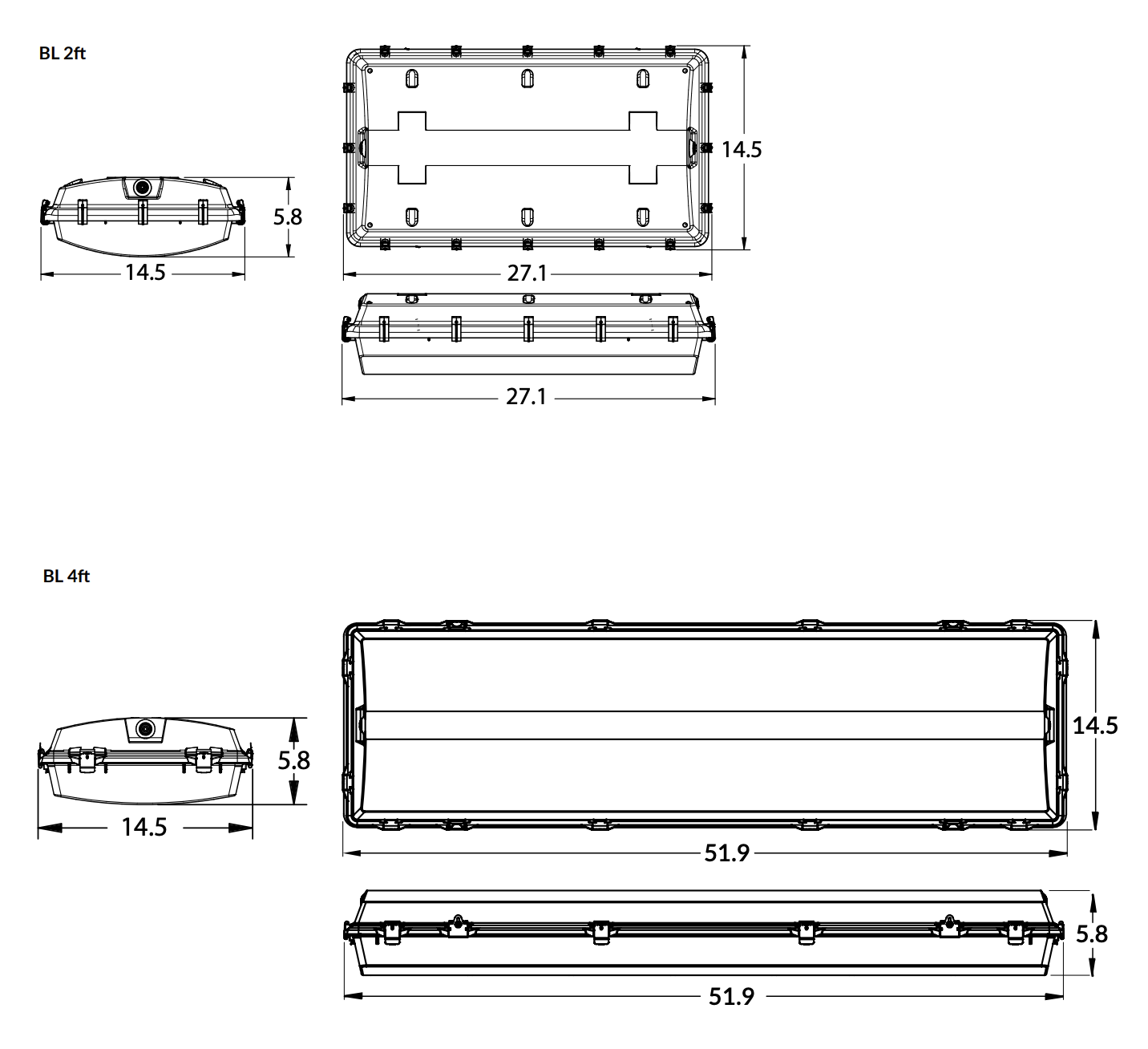

Dimensions
Product Brochure

The ILP BL Series Vapor Tight High Bay is a robust and durable wide-body luminaire designed for extreme environments. With industry-leading ambient operating temperatures up to 140°F, high efficacy up to 168 lm/W, diverse optics, wireless controls, and ratings like IP65/66/67/69K and NSF, it provides a sealed, gasketed solution for challenging high-bay applications.

Please contact us if you need assistance ordering specification grade fixtures.

2' BL Series Vapor Tight High Bay by ILP

From : $350.00

BL Series is an industry leading luminaire designed for applications requiring a robust, durable, sealed and gasketed construction for extreme environments. With an enhanced feature set including industry leading ambient operating temperatures, best in class distribution options, extremely high efficiency, wide lumen range, and multiple mounting options make the BL Series the prominent choice for nearly any high bay application.

Robust & Durable Wide Body Vapor Tight High Bay
Industry Leading Max Ambient up to 140ºF
- Ambient Range -40ºF to 140ºF (Select Models)
Extremely High Efficacy up to 168 lm/W
2ft & 4ft Fixture Lengths
Lumen Packages Ranging 12,000–40,000
Wide & Best in Class Narrow Distribution Optics

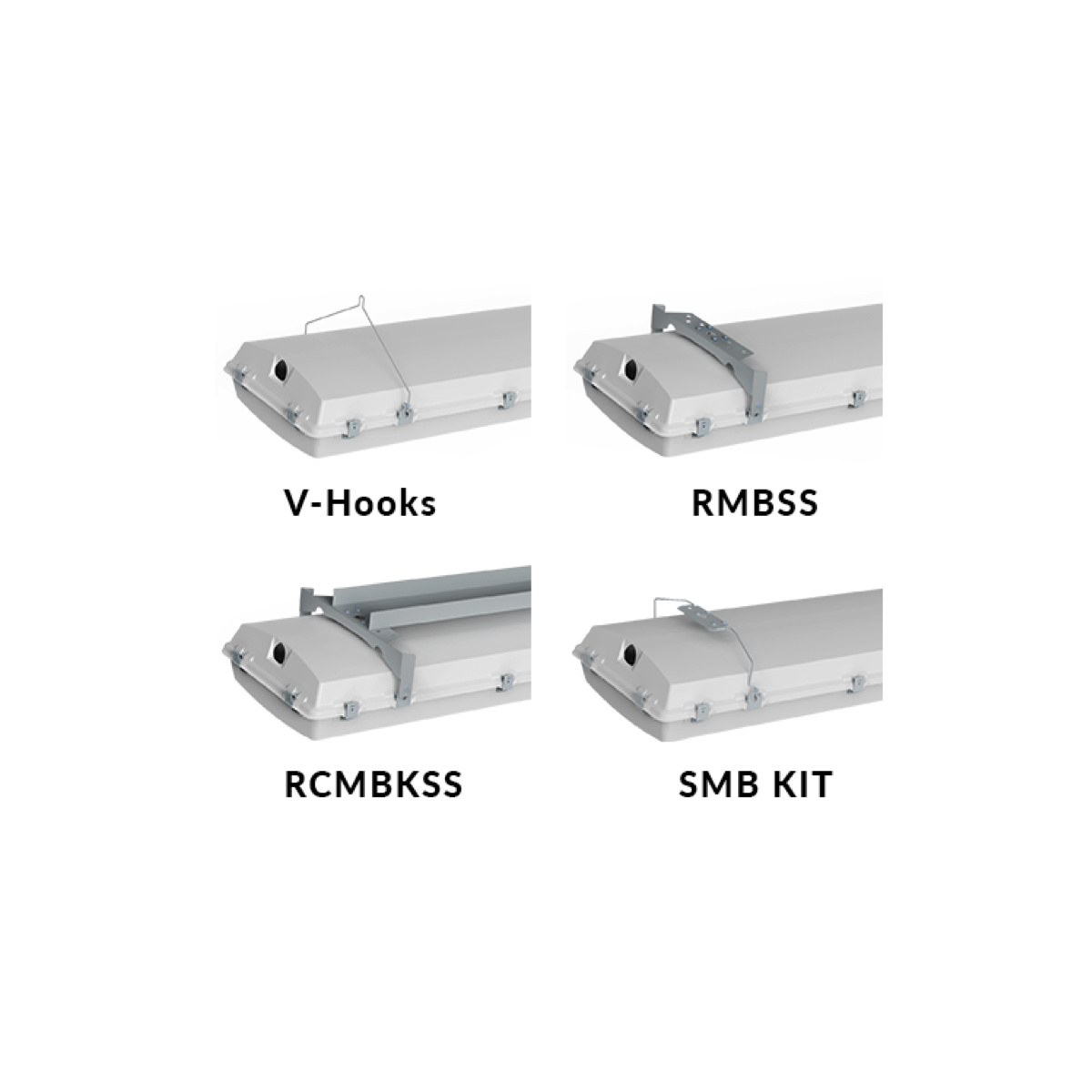

Surface, Pendant, or Suspended Mounting Options
Wireless Grouping Controls Options
IK10 Impact Rated Lens
Fiberglass Body Attributes
-F1 Weatherability Rating, 1500 PSI High Pressure Hosedown & 5VA Flame Rating
-IP65, IP66, IP67 & IP69 (2ft Only), NEMA4X, NSF
3000K–5000K CCT
>80 Color Rendering Index (CRI)
Calculated L70 >100,000 Hours
0-10V Dimmable Driver (100%-10%)
5 Year Warranty; Optional 10 Year Available
ETL Listed for Wet Locations
DesignLights Consortium® Premium Qualified Luminaire
