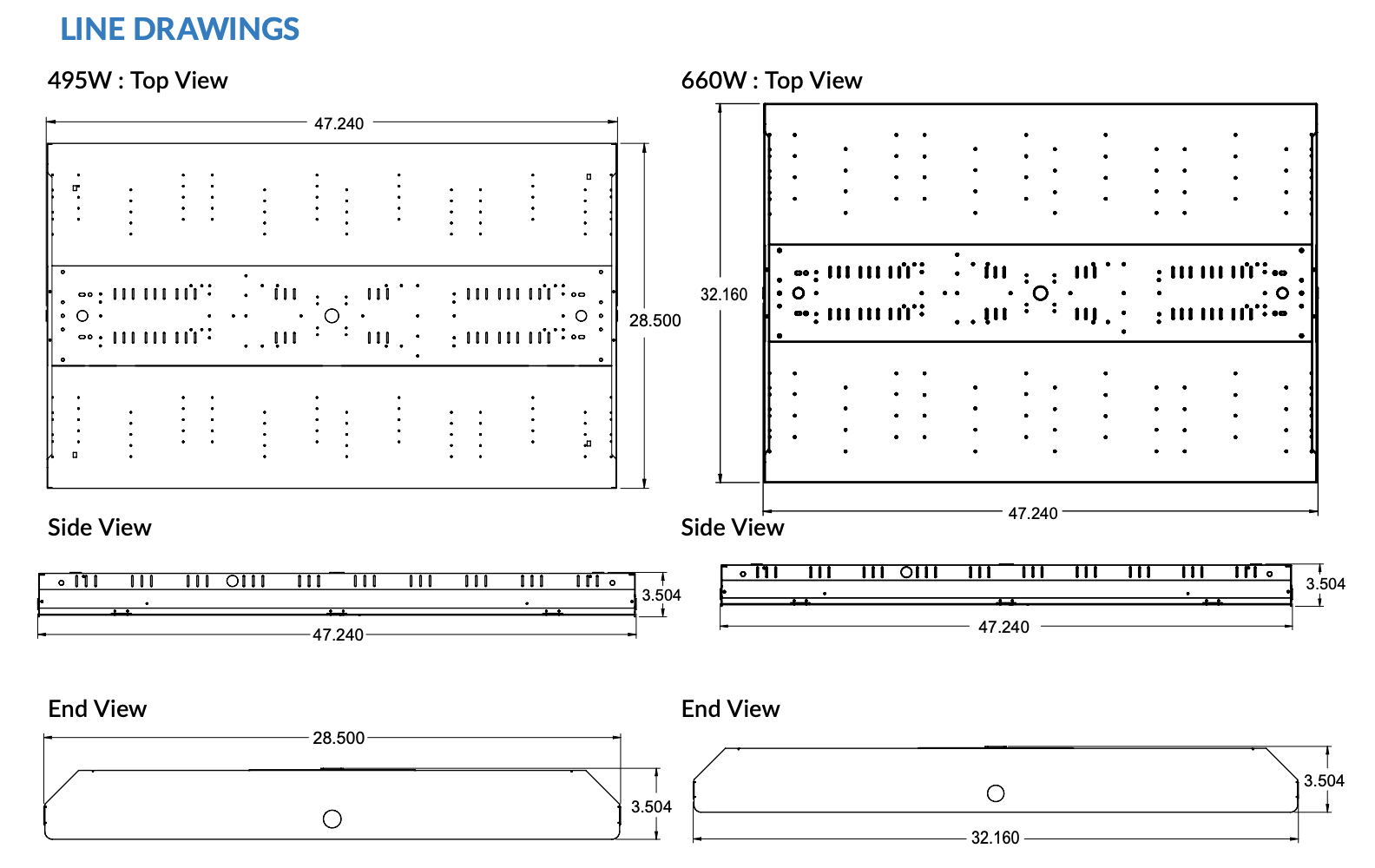

| Dimensions |
The ILP Tennis Court Premium High Bay is a high-efficiency luminaire designed specifically for tennis courts. It features an aluminum body with a steel channel, inverted mounting for indirect distribution, a tool-less hinged ballast access door, polycarbonate lens, dual-point chain or cable hanging, multiple dimming and sensor options, 0-10V dimming driver, and is ETL damp location rated.
Tennis Court Premium High Bay by ILP
From : $1, 308.33
- Premium efficiency delivers maximum savings
- Aluminum body with steel channel for added rigidity
- Inverted mounting for indirect distribution
- Tool-less hinged bottom ballast access door
- High gloss polyester white paint
- Riveted construction and vented ballast channel
- Polycarbonate Lens (std.)
- V-Clips for Dual Point Chain or Cable Hanging (std.)
- Multiple dimming & sensor options to fully control occ. & unocc. light levels
- 0-10V dimming driver (100% - 5%)
- ETL Damp Location Rated
- 5 Year Warranty
Brand :
ILP
Model Number :
PHB
Type :
Inverted
Lumens :
65,582-91,317 lm
Watts :
495W, 660W
Voltage :
120-277V
Color Temperature :
3000K, 3500K, 4000K, 5000K
CRI :
80+
Optics :
Direct/Indirect
Mounting :
Ceiling, Pendant, Stanchion, Suspended
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
495W: 28.5" x 47.24" x 3.504"
660W: 32.16" x 47.24" x 3.504"
660W: 32.16" x 47.24" x 3.504"
Weight :
9.99
