Home Downlights 6" NU6RD PRO Series Round Downlight RGBW by Alphabet Lighting
Specification Sheet
Installation Instructions

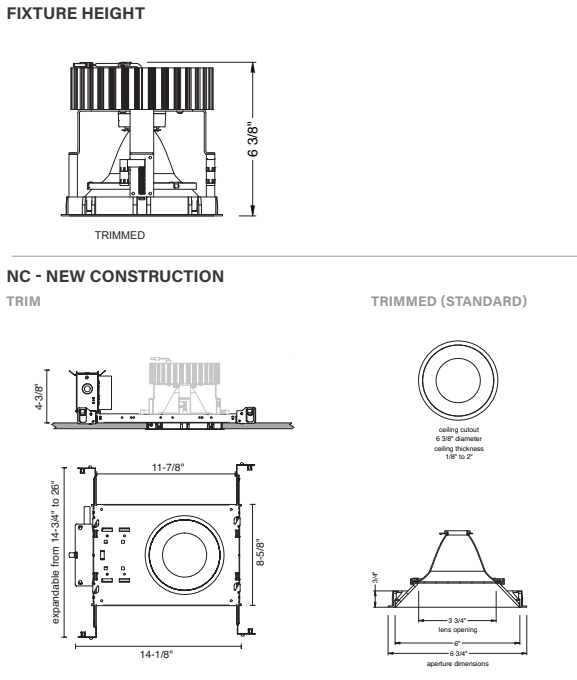

Dimensions
Warranty Information

6" NU6RD PRO Series Round Downlight RGBW by Alphabet Lighting


  • RGB (W) five white CCT options available.
  • On-board, closed-loop optical feedback measures the lumen depreciation of each channel and re-balances the color model to ensure color consistency over the life of LED array.
  • 40° - 80° optical beam control
  • Multiple mounting, trims and finishes available
  • 120-277VAC 50/60Hz input
  • Power factor > 0.9
  • Max ambient temperature 50oC
  • Battery Backup not offered. Emergency Generator/Inverter/Controls-Override Device supplied by others.

Color Temperature (CCT) :
Optic & LM Multiplier :
Trim Color :
Bezel Color :
Mounting Options :
Voltage :
Dimming :
Brand :
Alphabet
Model Number :
NU6RD-RGBW-10LM-90
Style :
Fixed Recessed
Aperture Size :
6"
Shape :
Round
Lumens :
760 lm
Watts :
25W
Input Voltage :
120-277V
Color Temperature :
RGBW
CRI :
90+
Beam Angle :
40°, 50°, 60°, 70°, 80°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Ratings :
Chicago Plenum, Damp, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed
Dimensions (L x W x H) :
6.75" x 6.75" x 6.375"
