6" NU6RD PRO Series Round Downlight Standard White by Alphabet Lighting

Home Downlights 6" NU6RD PRO Series Round Downlight Standard White by Alphabet

Additional Information

Specification Sheet
Installation Instructions

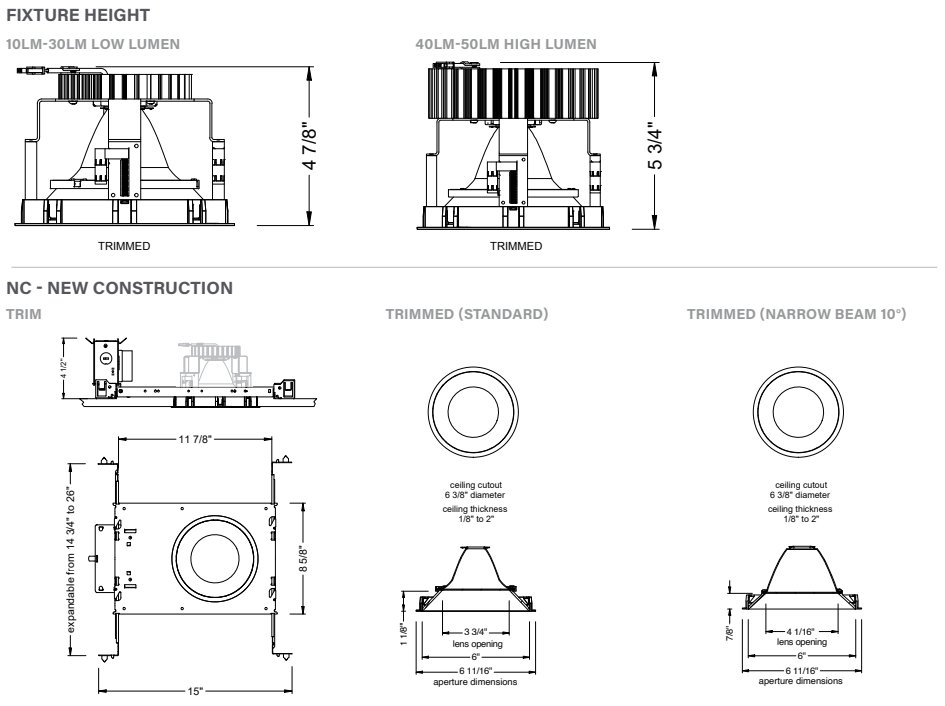

Dimensions
Warranty Information

6" NU6RD PRO Series Round Downlight Standard White by Alphabet

Thermally optimized for longevity
1-1/8" bezel regress with 1/16" micro flange
10° to 70° optical beam control
UGR <12
Multiple mounting, glare controls options, trim and finishes available
120V-277V, 120 only Triac / ELV
Power factory ≥ 0.9
2kV driver input surge protection
Remote and Integral (ITS) emergency test switch
7W, 10W (T20 CEC) and 12W EM 90min battery
Max. ambient installation temperature 95°F (35°C)

Lumens :

Color Temperature :

CRI :

Optic :

Accessories :

Bezel Lens :

Trim Color :

Bezel Color :

Mounting Options :

Voltage :

Dimming :

Emergency Battery Back-Up :

Brand :

Alphabet

Model Number :

NU6RD-SW

Style :

Fixed Recessed

Aperture Size :

Shape :

Round

Lumens :

855 - 4,225 lm

Watts :

9-54W

Input Voltage :

120-277V

Color Temperature :

2700K, 3000K, 3500K, 4000K

CRI :

80+, 90+

Beam Angle :

10°, 30°, 40°, 60°, 70°

Housing :

New Construction, Remodel, Retrofit, IC Rated, IC Box with Chicago Penum Rating

Dimmable :

Yes

Trim Finish :

White, Black

Ratings :

Chicago Plenum, Damp, IC, Non-IC, Wet

Safety Certification :

CSA, UL Listed

Dimensions (L x W x H) :

6.69" x 6.69" x 4.875"
