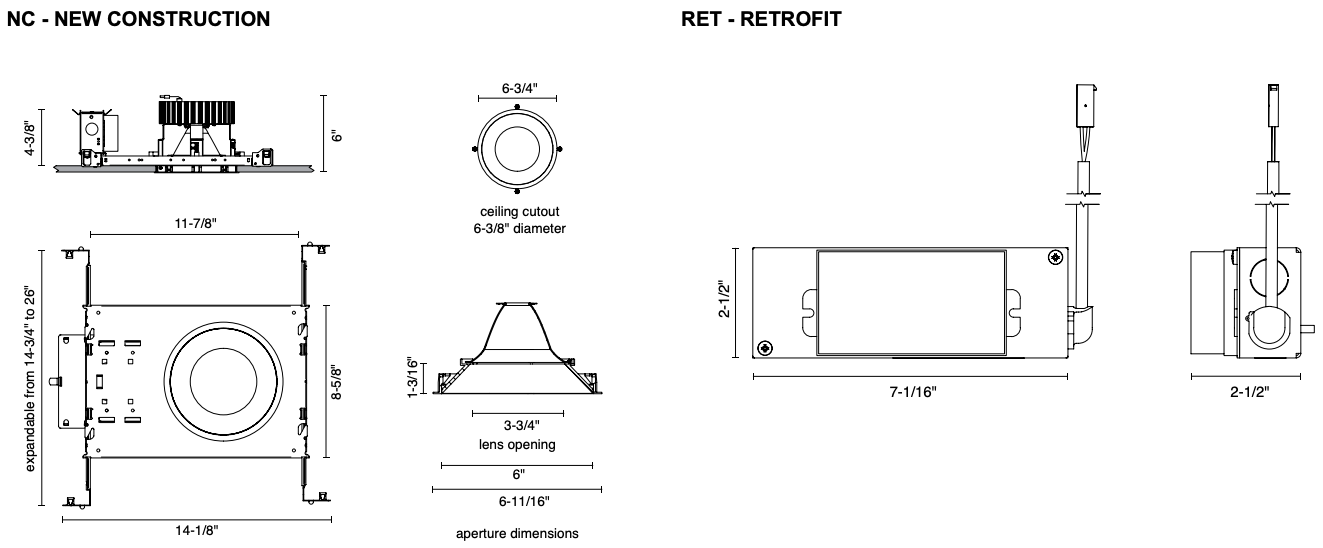

Dimensions
Warranty Information

6" NU6RD PRO Series Round Downlight Warm Dim by Alphabet Lighting


The NU6RD-WD 6" recessed downlight by ALPHABET offers economical and efficient dim-to-warm LED technology from Luminus, premium performance, thoughtful construction and pleasing aesthetics. Offered standard with premium dimming using EldoLED 1% flicker free drivers 120V-277V universal voltage. A minimalistic look is achieved with an ultrathin 1/16" trim that is only 5/16" wide. Color choices of both trim and bezel are offered for a customized look. Several beam angles available, plus an optional high-efficiency BrightView diffused lens for smooth light distribution and obscured LED image.


Voltage :
Lumens :
Optic & LM Multiplier :
Accessories :
Dimming :
Mounting Options :
Trim Color :
Bezel Color :
Emergency Battery Back-Up :
Brand :
Alphabet
Model Number :
NU6RD-WD-3018-97
Style :
Fixed Recessed
Aperture Size :
6"
Shape :
Round
Lumens :
800 - 2,400 lm
Watts :
13-40W
Input Voltage :
120-277V
Color Temperature :
Dim-to-Warm
CRI :
90+
Beam Angle :
35°, 40°, 55°, 60°, 80°
Housing :
IC Rated, IC Box with Chicago Penum Rating
Dimmable :
Yes
Trim Finish :
White, Black
Ratings :
Chicago Plenum, Damp, IC, Non-IC, Wet
Safety Certification :
CSA, UL Listed
Dimensions (L x W x H) :
6.69" x 6.69" x 6"
