| Specification Sheet | |
|---|---|

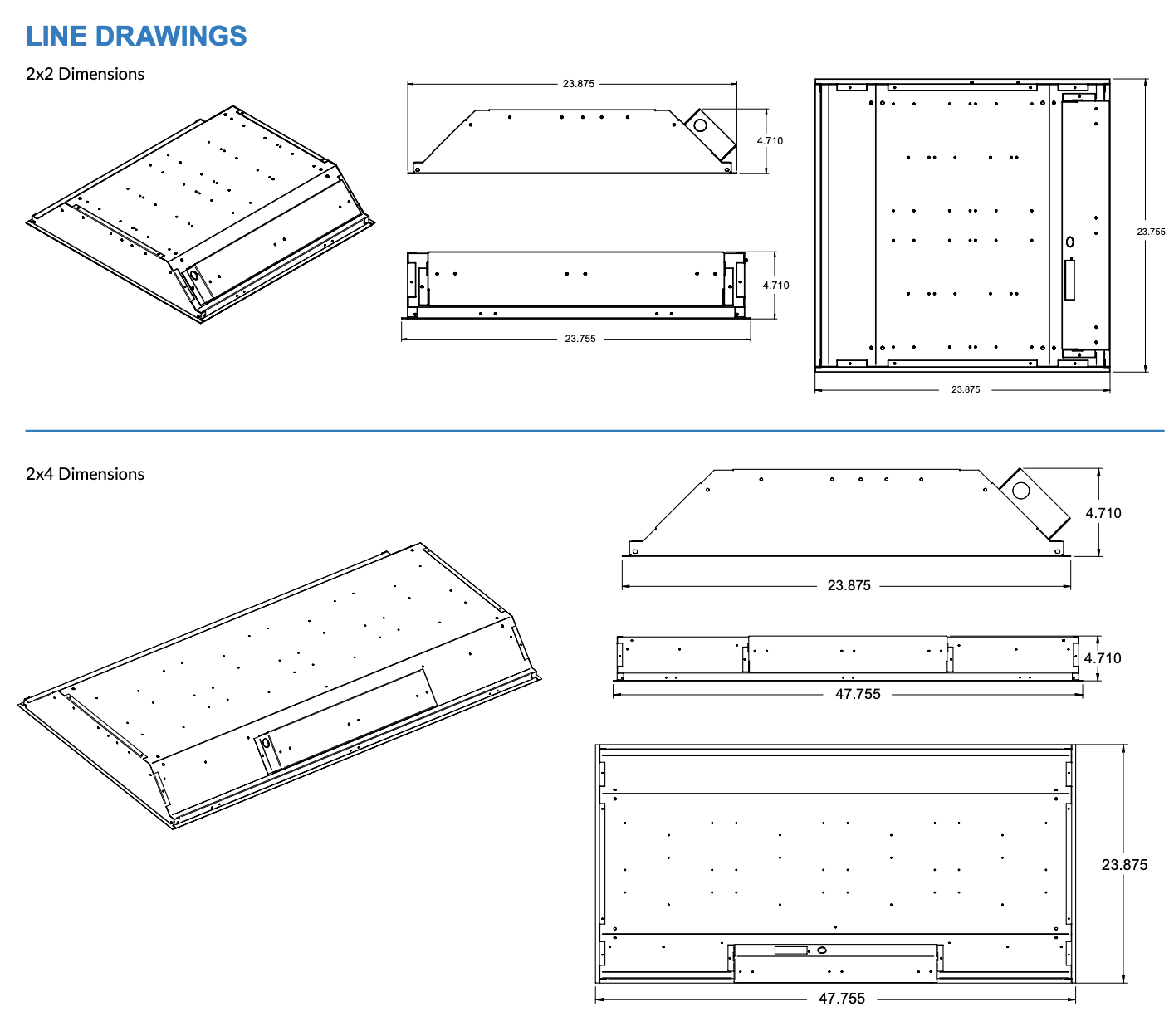

| Dimensions |
The ILP Recessed Grid Frame High Bay is a specification-grade 2x2 and 2x4 luminaire designed for new construction or renovation projects. With an aluminum housing, multiple lens options including frosted acrylic and polycarbonate, wire cage option, and ambient temperature range from -40°F to 125°F, it offers a versatile and durable recessed high bay solution.
2x2 Recessed Grid Frame High Bay by ILP
From : $300.00
- 2x2 & 2x4 Recessed Grid High Bay
- Specification grade for new construction or renovation
- Aluminum prepainted housing
- Standard Configuration
- No Lens
- No Wire Cage - Multiple Lens Options
- Frosted Acrylic
- Clear Polycarbonate
- Frosted Polycarbonate - 11 ga. Wire Cage option
- Flange Kit option
- Ambient Temperature Range -40ºF up to 125ºF
- 0-10V Dimmable Driver (100%—10%)
- 3000K - 5000K CCT
- >80 Color Rendering Index
- 5 Year Warranty; 10 Year Warranty Optional
- ETL Listed for Damp Location
- DesignLights Consortium® Premium Qualified Luminaire
Applications
- Gymnasiums
- Multipurpose Rooms
- Car Dealerships
- Racquetball Courts
Brand :
ILP
Model Number :
GH22
Type :
Retrofit Kit
Lumens :
11,740-19,980 lm
Watts :
90-135W
Voltage :
120-277V
Color Temperature :
3000K, 3500K, 4000K, 5000K
CRI :
80+
Optics :
Wide
Mounting :
Ceiling
Environment :
Damp Location
Temperature :
Standard
Dimmable :
0-10V
Ratings :
Damp, DLC Premium, Title 24
Safety Certification :
ETL Listed
Dimensions (L x W x H) :
23.76" x 23.88" x 4.71"
Weight :
9.99
